Place of Origin: Colorado·USA
Place of manufacturer: Shenzhen·China
Certification: SGS/ISO 9001
Model Number: DM-RO-8040 / DM-RO-4040
Custom-made: YES
Neutral Packaging: Carton box
Customized packaging: MOQ≥100pieces
Delivery Time: 10-30 working days

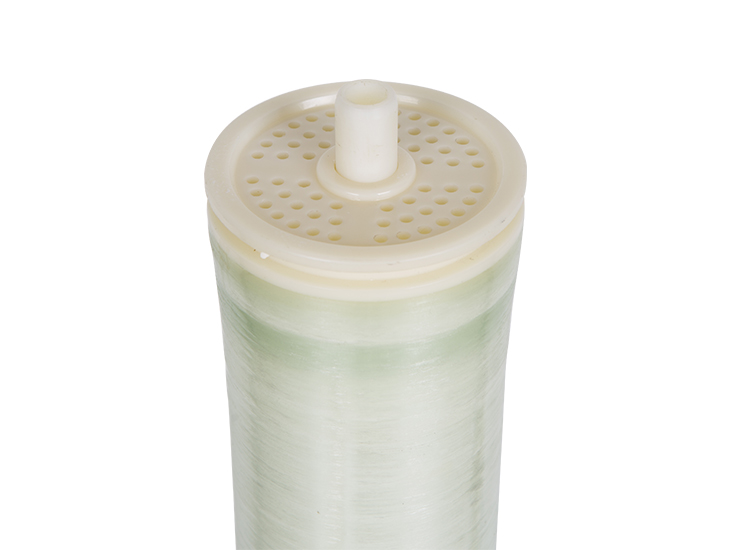

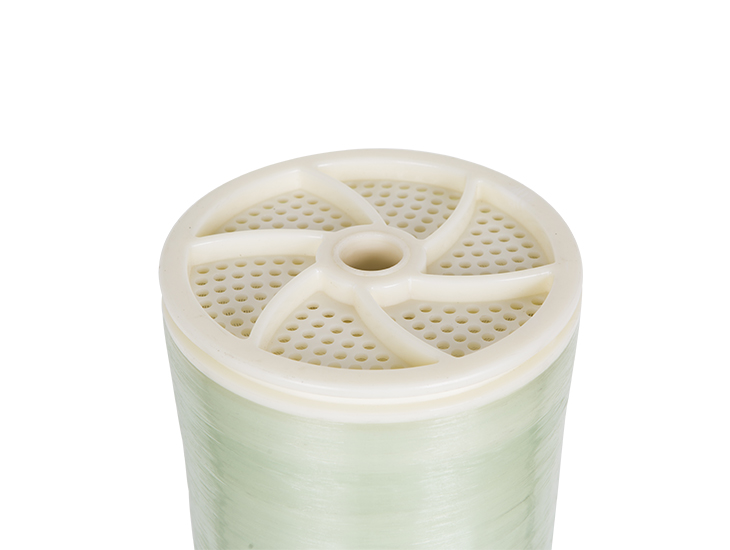

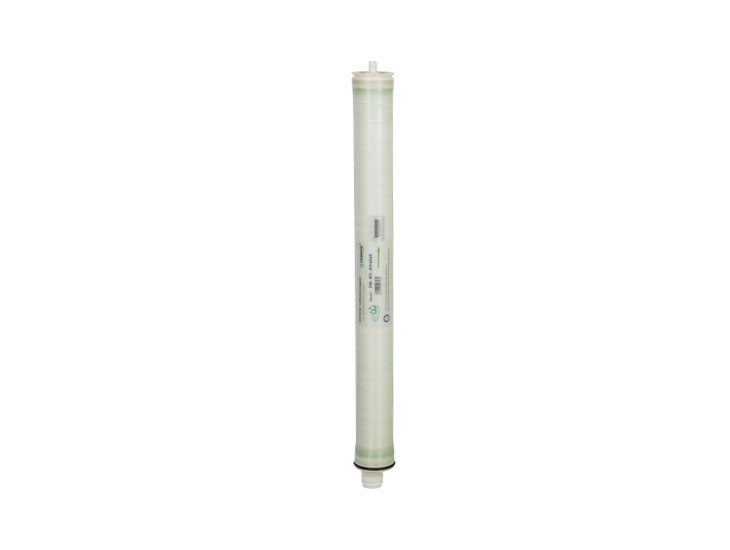

| Model | DM-RO-BW4040 | |
|---|---|---|
| A | mm（inch） | 1016.0（40） |
| B | mm（inch） | 100.1(3.94) |
| C | mm（inch） | 19.1（0.15） |
| D | mm（inch） | 26.7（1.05） |
| Membrane Material | Cross Linked Fully Aromatic Poly amide Composite | |
|---|---|---|
| Membrane Area ft2（m2） | 85（7.9） | |
| Product Flow Rate GDP(m3/d） | 2300（8.7） | |
| Salt Rejection | Average(%) | 99.5 |
| Min. (%) | 99.2 | |
| Feed water pressure psi（MPA） | 70(0.48) | |
| Feed water temperature℃（F） | 25（77） | |
| Feed water concentration ppm | 2000（NACL） | |
| Feed water pH range | 7.5 | |
| Single element recovery rate % | 15 | |
| Max.Operating pressure psi（MPA） | 600（4.2） | |
| Max.Operating temperature℃（F） | 45（143） | |
| Max feed flow GPM(m3/h） | 16（3.6） | |
| Feed SDI15 | 5.0 | |
| Feed water chlorine ppm | 0.1 | |
| Feed water turbidity NTU | 1.0 | |
| Feed water pH range, continuous cleaning | 3-10 | |
| Feed water pH range, chemical cleaning | 2-12 | |
| Max.Pressure drop / element psi（MPA） | 15（0.1） | |
Food beverage industry
Municipal wastewater reuse
Chemical printing dyeing industry
Electronic plating industry
Mining Production Industry
Power metallurgy industry
Pharmaceutical Industry
Municipal water supply and desalination
DM-NF90-4040
DM-NF90-4040
