Place of Origin: Colorado·USA
Place of manufacturer: Shenzhen·China
Certification: SGS/ISO 9001
Series Name: DM-OPD

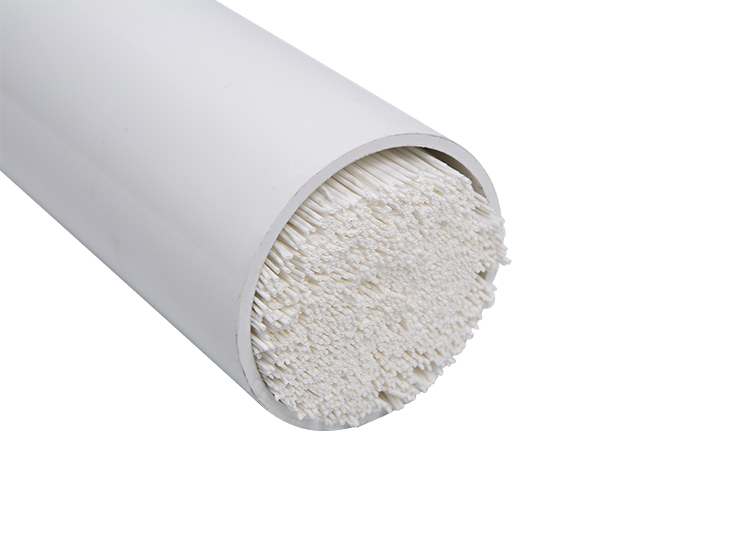

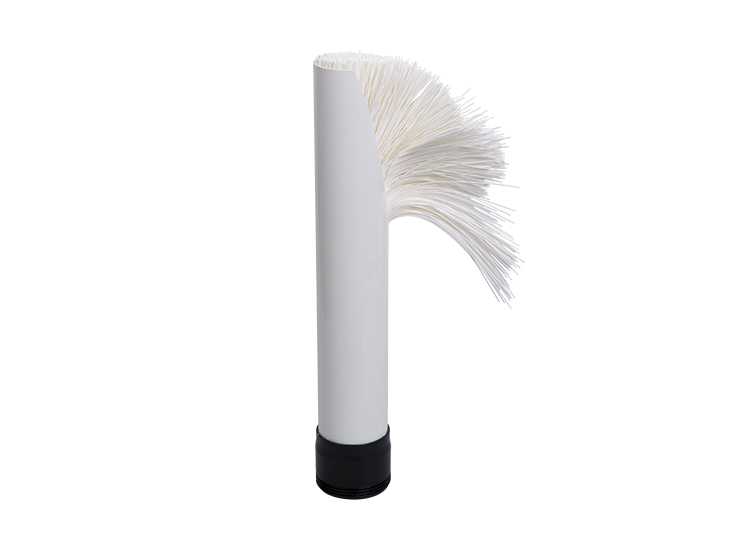

Membrane type: Hollow Fiber
Custom-made: YES
Neutral Packaging: Carton box
Customized packaging: MOQ≥100pieces
Delivery Time: 10-30 working days
| Model | DM-OPD980 | |
|---|---|---|
| Effective area（m2） | 77 | |

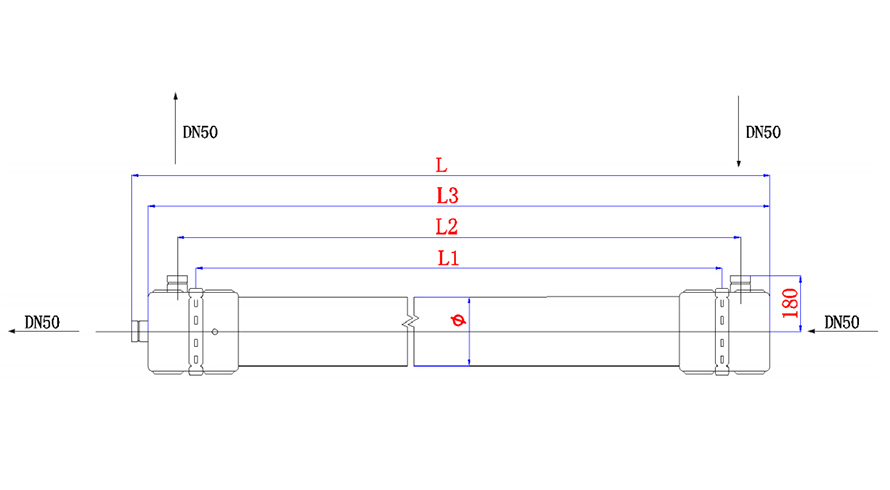

| Pressure Size | Ф (mm) | 225 |
| L (mm) | 2360 | |
| L1 (mm) | 2000 | |
| L2 (mm) | 2130 | |
| L3 (mm) | 2320 | |

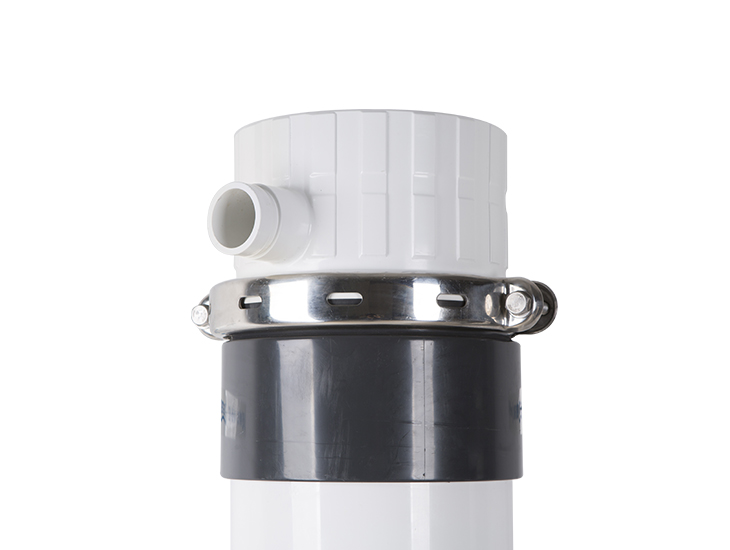

| Inlet size(mm) | DN50 | |
| Outlet size(mm) | DN50 | |
| Material | PVDF |
|---|---|
| Pure water fulx（25℃，0.1Mpa） | >450L/(m2·h） |
| Tensile strength | >450g |
| Pore size | 0.02μm |
| I/O diameter | 0.7/1.3mm |
| Bursting resistance | ≥0.6MPa |
| Permeate Turbidity | ≤0.05NTU |
| Suspended solids（SS） | ≤0.1mg/L |
| life span | 5-8 years |
| Bacteria removal, virus removal | ≥ 4 log |
| Recoveryrate | 95%~98% |
| SDI | ≤2.5 |
Food beverage industry
Municipal wastewater reuse
Chemical printing dyeing industry
Electronic plating industry
Mining Production Industry
Power metallurgy industry
Pharmaceutical Industry
Municipal water supply and desalination

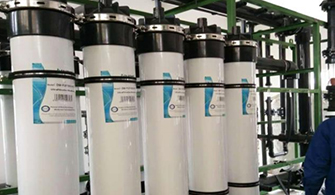

400T/day for food processing

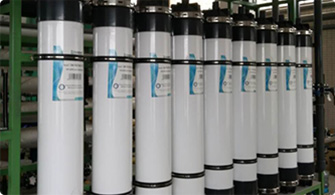

100T/day for juice concentrate

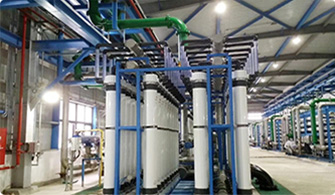

300T/day for drinking water

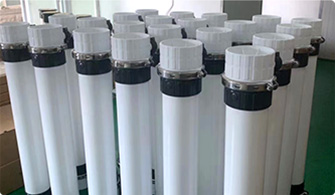

Production base
400T/day for food processing
100T/day for juice concentrate
300T/day for drinking water
Production base

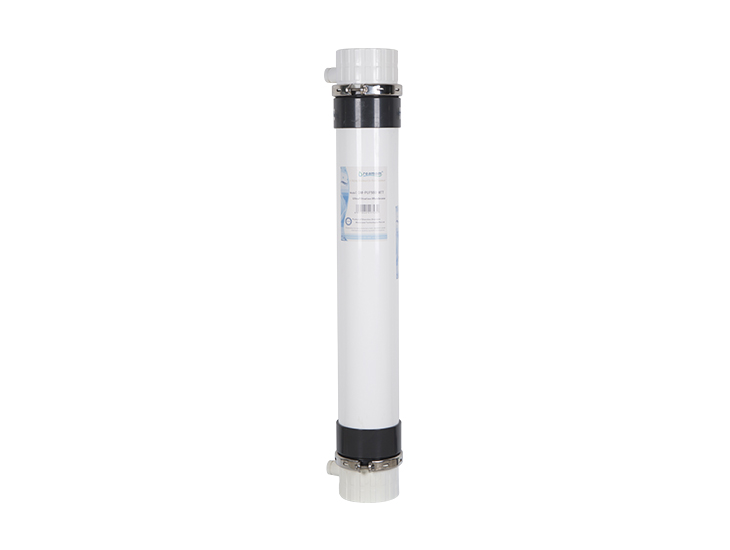

DM-OPD980
